Economical Laser Cutter for Stainless Steel

Economical Laser Cutter for Stainless Steel

Brand Name: Star Power
Model Number: YZ28G0200T
MOQ: 1 conjunto
preço: negotiable
Payment Terms: L/c, d/p, t/t
Supply Ability: 100 conjuntos/conjuntos por mês
Detail Information
Lugar de origem:
Guangdong, China
Certificação:
CU,ISO
Banco de dados de processos de corte a laser:
Banco de dados de processos de corte a laser
Sistema de geração a laser:
Max 3000W
Tipo de máquina:
Máquina de corte a laser de fibra do tipo rolo
Sistema:
Servo
Tensão:
380V/220V Opcional
Dimensão (l*w*h):
2200*2400*4200mm
Velocidade máxima de posicionamento:
100m/min
Energia motora (KW):
30kW
Detalhes da embalagem:
moldura de metal com filme
Destacar:

stainless steel laser cutter

,

economical kitchen sink machine

,

laser cutter for stainless steel

Product Description
Economical Laser Cutter for Stainless Steel
Key Features
  • High cost-effectiveness solution for small-batch production
  • Stable cutting of stainless steel sheets (0.2-12mm thickness)
  • ±0.03mm positioning accuracy with burr-free cutting edges
  • Compact design requiring only 1.8-2.5㎡ workshop space
  • Air-cooling heat dissipation eliminates need for water-cooling equipment
  • Supports CAD/AI file import with low operation threshold
Technical Specifications
Laser Generator System MAX 3000W
Machine Type Roll type fiber laser cutting machine
System Servo
Voltage 380V/220V Optional
Dimensions (L×W×H) 2200×2400×4200mm
Maximum Positioning Speed 100m/min
Motor Power 30kw
Detailed Description

This economical laser cutter is designed specifically for small-batch production, startups, and processing scenarios with limited budgets. It maintains controllable costs while delivering stable performance for stainless steel cutting applications.

The machine features a high-stability entry-level fiber laser source capable of cutting stainless steel sheets from 0.2-12mm thickness with precision accuracy of ±0.03mm. Ideal for kitchenware accessories, hardware parts, and small signs production.

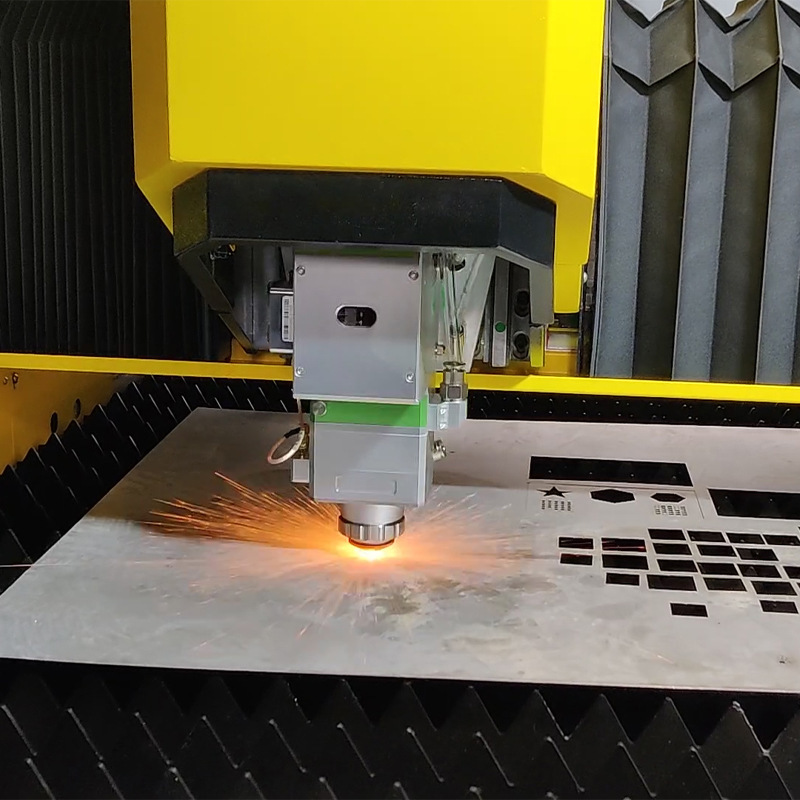

Economical Laser Cutter for Stainless Steel 0
Industry Applications
  • Furniture Manufacturing: Produces components of various shapes for unique designs
  • Mechanical Manufacturing: Precisely cuts complex shapes, improving component accuracy
  • Architectural Decoration: Enables fine processing of metal components
  • Aerospace: Meets demanding quality and accuracy requirements
  • Electronics Industry: Cuts circuit boards and achieves micro-component processing
Packaging & Protection

The machine is packaged with high-quality film materials that provide comprehensive protection during transportation and storage. The film closely fits equipment contours to prevent scratches, collisions, and dust intrusion while offering excellent moisture resistance.

Additional Specifications
CNC System (Including Control Software) FSUT 2000E
Automatic Following System FSCUT
Database of Laser Cutting Processes Star Power Laser
Manual Laser Cutting Head Raytools
High-Flex Cable Energy Chains China
Remote Control Handle CC laser

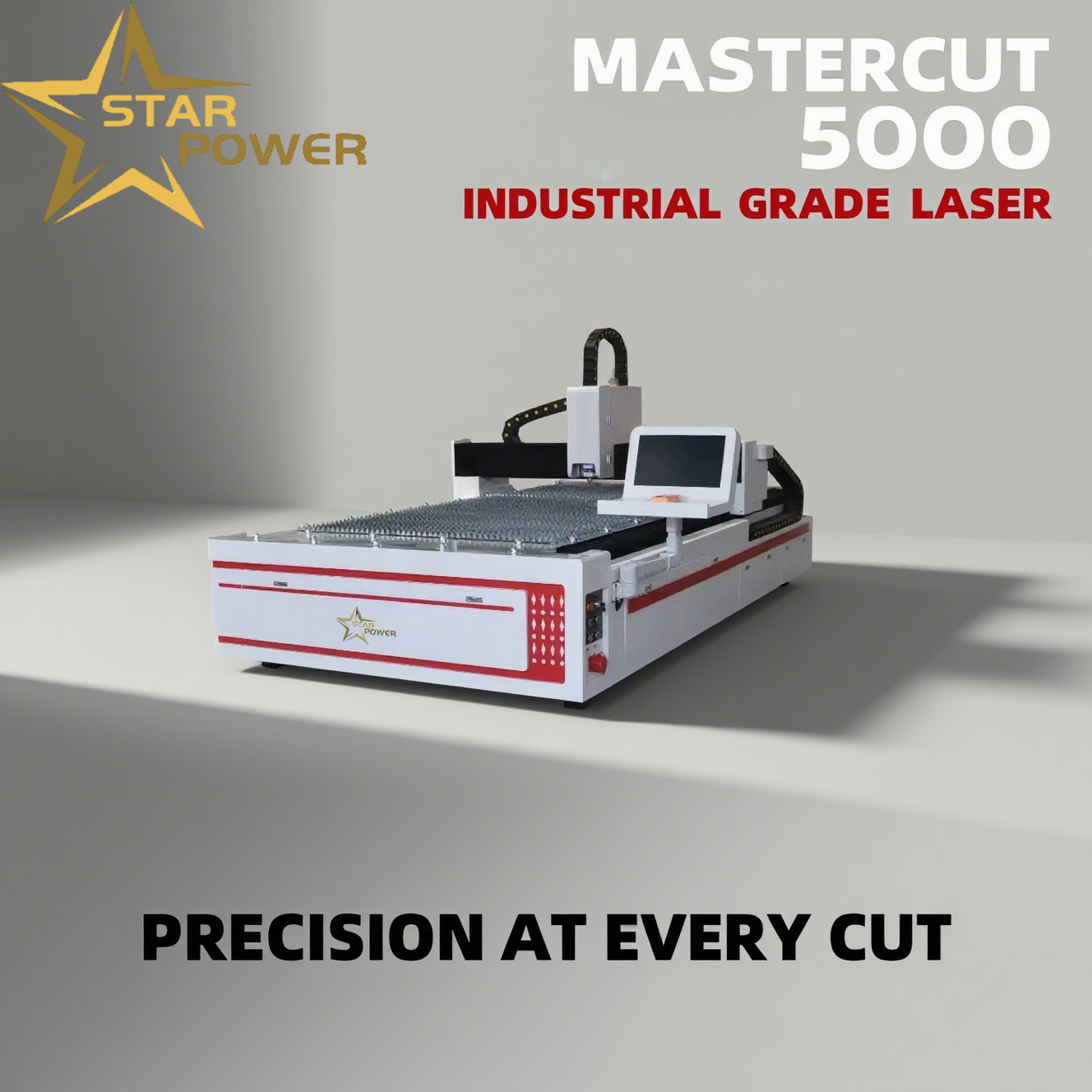

Economical Laser Cutter for Stainless Steel 1

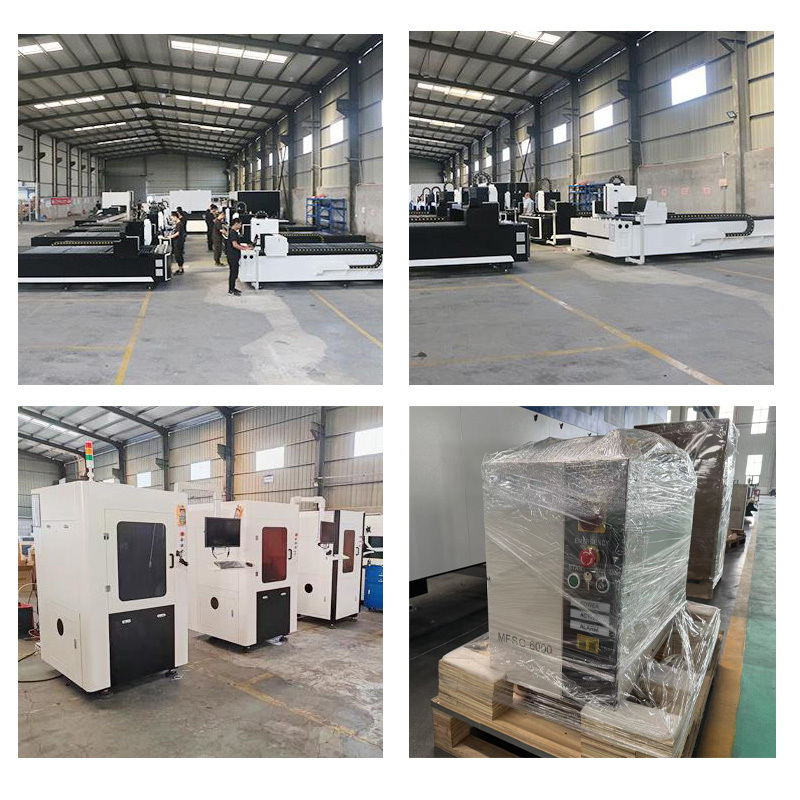

Economical Laser Cutter for Stainless Steel 2

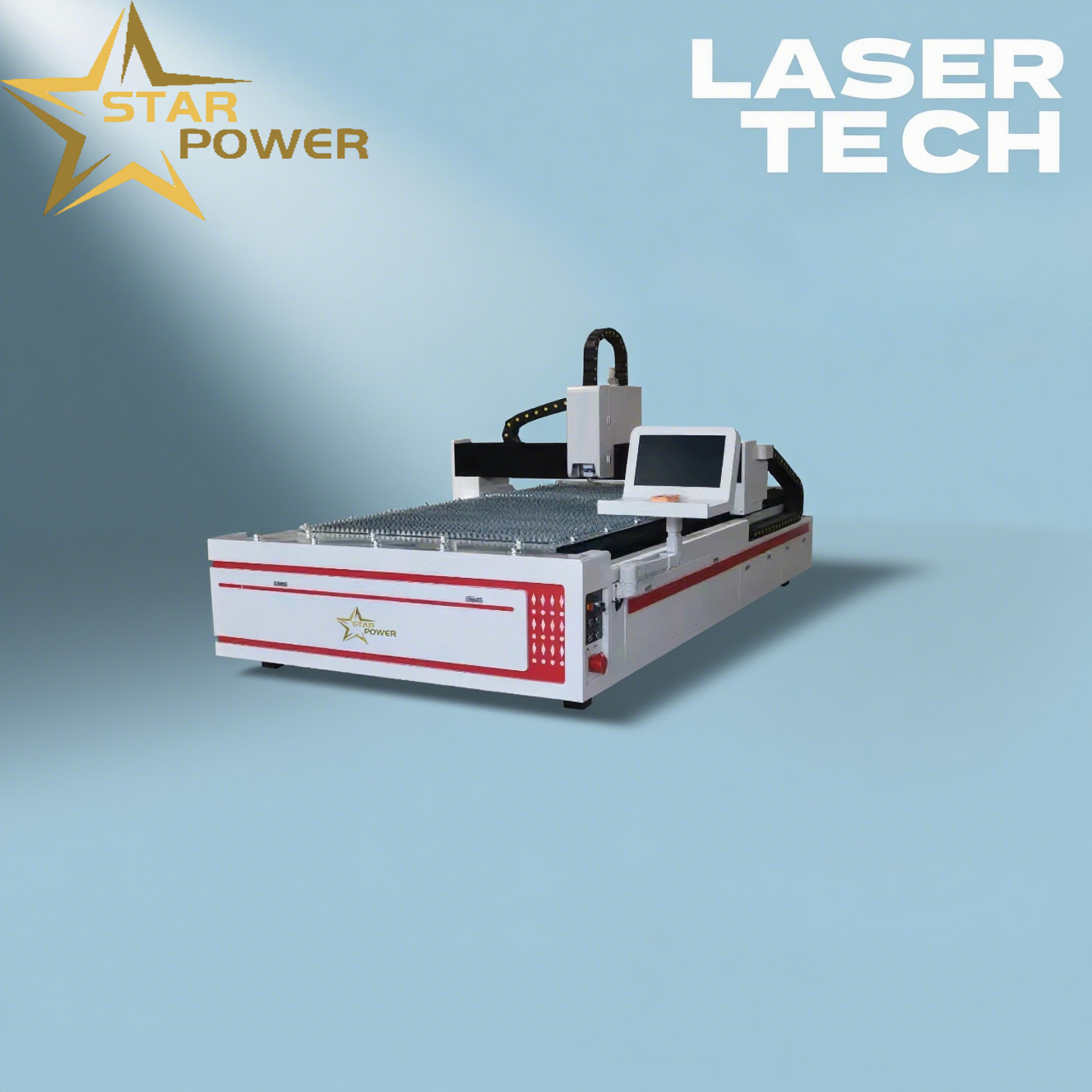

Economical Laser Cutter for Stainless Steel 3
Economical Laser Cutter for Stainless Steel 4
